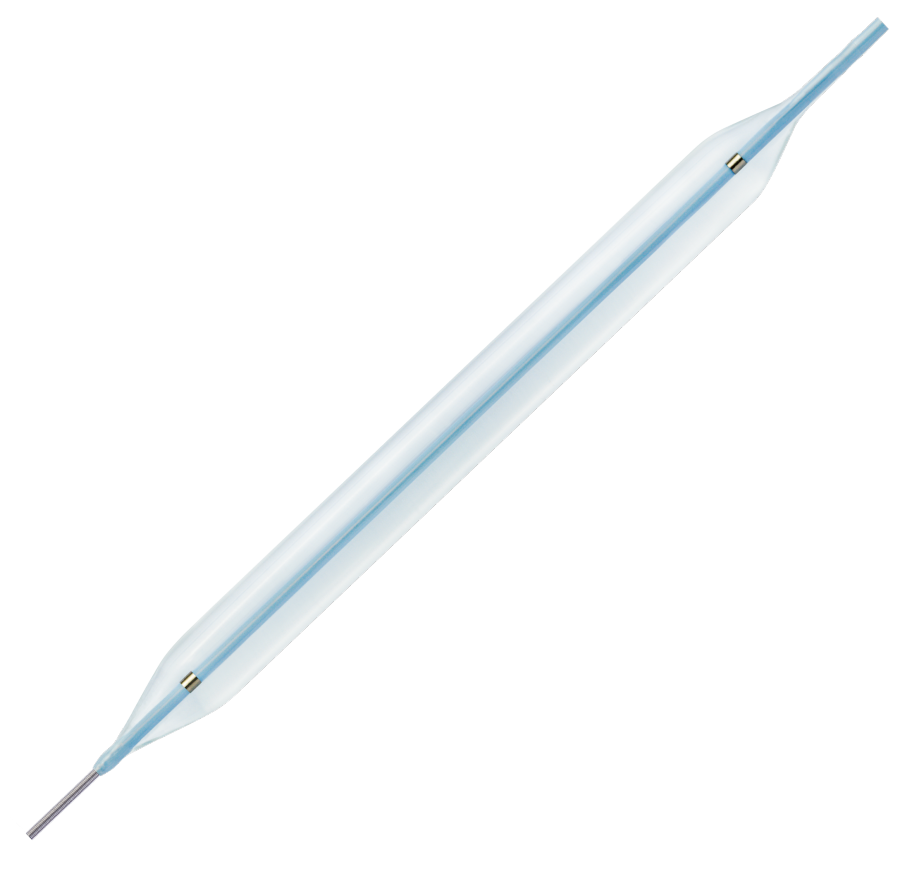

Passeo™-35 HP
Peripheral Dilatation Catheter
Passeo™-35 HP Peripheral Dilatation Catheter is a high pressure PTA Balloon for the dilatation of resistant lesions in complex anatomy. It is indicated for use in Percutaneous Transluminal Angioplasty of the femoral, iliac and renal arteries, and for the treatment of obstructive lesions of native or synthetic arteriovenous dialysis fistulae.*
| Balloon Catheter | |
|---|---|
| Catheter type | OTW |
| Recommended guide wire | 0.035” |
| Tip | Soft, short, tapered |
| Balloon material | Nylon/Pebax, controlled compliance |
| Balloon folding | 3-fold (3.0 - 9.0 mm); 5-fold (10.0 - 12.0 mm) |
| Balloon markers | 2 radiopaque markers |
| Sizes | 3.0 - 12.0 mm; L: 20 - 100 mm |
| Shaft | 5.9F, coaxial |
| Usable length | 40 cm and 75 cm |
| Balloon diameter x length (mm) | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3.0 x 40 | 4.0 x 20-40 | 5.0 x 20-60 | 6.0 x 20-100 | 7.0 x 20-100 | 8.0 x 20-80 | 9.0 x 40 | 10.0 x 40 | 12.0 x 40 | |||||||||||
| Nominal Pressure (NP) | atm** | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 12 | 12 | |||||||||
| (mm) | 3.11 | 4.01 | 5.01 | 6.05 | 6.93 | 7.98 | 8.96 | 10.02 | 11.86 | ||||||||||
| Rated burst Pressure (RBP) | atm** | 27 | 27 | 27 | 25 | 23 | 22 | 20 | 20 | 18 | |||||||||
| (mm) | 3.42 | 4.41 | 5.46 | 6.56 | 7.45 | 8.50 | 9.66 | 10.78 | 12.41 | ||||||||||
| **1 atm = 1.013 bar | |||||||||||||||||||
| Balloon (mm) | Catheter length 75 CM Balloon length (mm) | Catheter Length 40 CM Balloon length (mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 40 | 60 | 80 | 100 | 40 | ||||||
| 6F | 3.0 | - | 399077 | - | - | - | - | ||||
| 6F | 4.0 | 399078 | 399079 | - | - | - | - | ||||
| 6F | 5.0 | 399080 | 399081 | 399082 | - | - | - | ||||
| 6F | 6.0 | 399083 | 399084 | 399085 | - | 399086 | 399063 | ||||
| 6F | 7.0 | 399087 | 399088 | 399089 | - | 399090 | 399067 | ||||
| 6F | 8.0 | 399091 | 399092 | 399093 | 399094 | - | 399071 | ||||
| 7F | 9.0 | - | 399095 | - | - | - | - | ||||
| 7F | 10.0 | - | 399096 | - | - | - | - | ||||
| 8F | 12.0 | - | 399097 | - | - | - | - | ||||
*Indication as per IFU.
CAUTION: Federal (USA) law restricts this device to sale or use by or on the order of a physician.
